Introduction
An autoregulatory mechanism maintains cerebral blood flow at constant levels over a blood pressure range of 60 to 150 mmHg (1) . This control system becomes compromised by the progression of angiopathy derived from conditions such as hypertension and / or diabetes mellitus, which in turn narrows the range of autoregulation. Thereafter, changes in blood pressure will affect the cerebral blood flow. Postural cerebral hypoperfusion is a phenomenon that can lead to transient neurologic deficits during postural change (2). Postural hypoperfusion has been visualized by brain Tc-99m hexamethyl-propyleneamine oxime (HMPAO) SPECT in which Tc-99m HMPAO deposits in the brain revealing the frozen cerebral perfusion images (3) of patients with Takayasu's arteritis (4), cerebrovascular disease (5) and orthostatic hypotension (6) due to the dysfunctional autoregulation of cerebral blood flow.
We investigated whether or not postural cerebral hypoperfusion is involved in causing cerebral infarction compared with diabetic or hypertensive factors.
Materials and Methods
Upright test with Tc-99m HMPAO brain SPECT (Fig.1)
Fig.1: Procedure for upright stress test.
click to enlargeAfter inserting a plastic flexible needle into the antecubital vein, a patient lay on a couch in a quiet and dim room with the legs elevated for 30 min. During this period, Tc-99m HMPAO was labeled by adding Tc-99m pertechnetate to a non-radioactive kit (Cerebrotec, Nihon Medipysics, Nishinomiya). The patient was then was instructed to move from the supine, to a standing position within about three seconds, with assistance if necessary. As soon as the patient was fully upright, a bolus injection of 400 MBq of Tc-99m HMPAO was administered, followed by a flush with 20 ml of saline. The patient remained standing for 5 min to complete Tc-99m HMPAO fixation in the brain, then was moved to the SPECT room. The first SPECT was initiated, then another 500 MBq of Tc-99m HMPAO was administered while the patient remained in the SPECT bed. Blood pressure was measured using a sphygmomanometer before and immediately after the upright test.
CRITERIA FOR RISK FACTORS
We classified patients into 4 group according to a combination of risk factors for hypertension or diabetes mellitus (criterion for hypertension (+) was either a systolic pressure of over 160mmHg or a diastolic pressure above 95 mmHg; that for diabetes (+) was a fasting blood sugar level of 140 mg/dl ). Group A, both hypertension(-) and diabetes mellitus(-) ; Group B, hypertension (+) and diabetes mellitus(-) ; Group C, hypertension(-) and diabetes mellitus (+); Group D, both hypertension (+) and diabetes mellitus (+).
Carotid stenosis, cerebral infarction and orthostatic hypotension were scored as follows.
(1) Carotid stenosis was positive (scored as 1) for 75% or more than stenosis in carotid artery, otherwise it scored as 0.
(2) Cerebral infarct was positive (scored as 1) when the longest axis of low density area is longer than 1cm , equivocal (scored as 0.5), otherwise it scored as 0.
(3) Orthostatic hypotension was positive (scored as 1) when systolic blood pressure fell by over 20 mmHg in the upright test, otherwise it scored as 0.
(4) Postural cerebral hypoperfusion (PCH ) in brain SPECT images was visually assessed by three nuclear medicine doctors.
MATERIALS
After obtaining informed consent, 108 patients (age 63.6(I1(J11.0 yr.; male/female ratio, 68/40) were classified into Groups A, B, C and D ( n = 32, 39, 13 and 24, respectively .
All results are expressed as means(I1(JSD. The significance of differences was calculated using the paired t-test or $B&V(J 2 analysis. A p value of <0.05 was considered significant.
Results
Stenosis and infarct scores are shown in Fig. 2 and 3, respectively.
Fig.2: Stenosis score in groups A to D.
click to enlarge
click to enlarge
Fig.3: Infarct score in groups A to D.

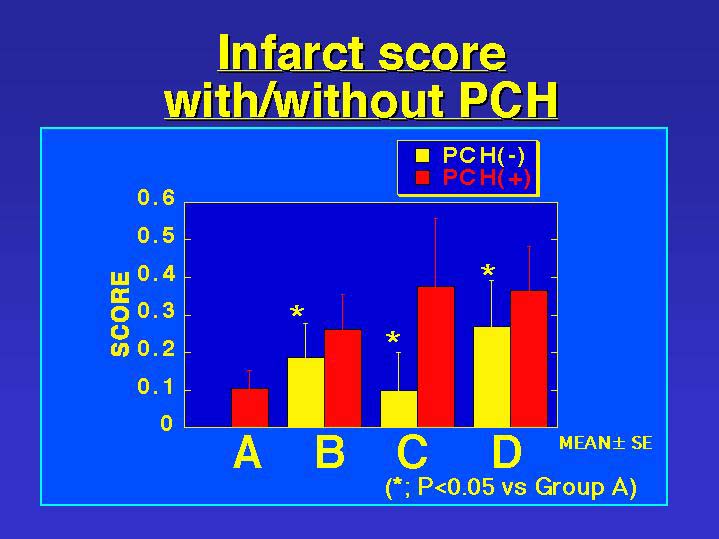

We classified into PCH (+) (n=19) and PCH(-) (n=13). In PCH (-), t-value by $B&V(J 2 analysis between Groups A and B, A and C, A and D significantly differed at 0.030, 0.042 and 0.006, respectively. However, in PCH(+) that did not reveal significant differences in PCH (+) values of 0.533, 0.702 and 0.152, respectively (Fig.4).
click to enlarge
Fig.4: Rates of cerebral infarction in groups A to D with and without postural cerebral infarction.
Representative case of PCH(+) was shown in Fig. 5.
click to enlarge
Fig.5: Patient in Group C shows postural cerebral hypoperfusion in the bilateral front-parietal area. Upright Tc-99m HMPAO brain SPECT shows decreased activity in bilateral front-parietal areas (arrow). Subsequent supine Tc-99m HMPAO brain SPECT shows filling in the bilateral frontal areas (R, Right; Raise-up, upright Tc-99m HMPAO brain SPECT; Supine, Supine Tc-99m HMPAO brain SPECT.)
Discussion and Conclusion
Frontal susceptibility to changes in blood flow might be due to a "functional" hemodynamic mechanism that induces orthostatic stress, namely maladapted autoregulation. Postural cerebral hypoperfusion with upright Tc-99m HMPAO brain SPECT would be a transient abnormality in the CBF which would be undetectable if the CBF was assessed only in the supine position. Lesions in cerebrovascular disease initially involve the frontal area of the brain as evidenced by CT scans showing abnormal features such as areas of low density and periventricular hyperlucency. From a statistical viewpoint, the number of elderly patients with orthostatic hypotension has increased (7). This may be derived from a delayed autonomic nervous response to restore blood pressure according to postural changes. Maladaptation in the frontal area might play a role in the progression of cerebral ischemia or infarction.
The risk factor of cerebral hypoperfusion indicating the occurrence of cerebral infarction was equivalent to that of hypertension or/and diabetes mellitus. It is therefore crucial that postural hypoperfusion is controlled as well as hypertension and diabetes mellitus, to prevent cerebral infarction from progressing.
References
- Lassen, N (1959) Cerebral blood flow and oxygen consumption in man. Physiol Rev, 39: 183-238.
- Ziegler, MG (1980) Postural hypotension. Ann Rev Med, 31:239-245.
- Sharp, PF et al. (1986) Technetium-99m HM-PAO stereoscopes as potential agents for imaging regional cerebral blood flow. J Nucl Med, 27:171-177.
- Hayashida, K et al. (1992) Visualization of posture-dependent cerebral blood flow in a patient with Takayasu's disease by means of Tc-99m HMPAO brain single photon emission tomography. Eur J Nucl Med, 19:987-989.
- Hayashida, K et al. (1993) Detection of postural cerebral hypoperfusion with Technetium-99m HMPAO brain SPECT in patients with cerebrovascular disease. J Nucl Me, 34:1931-1935.
- Hayashida, K et al. (1996) Maladaptation of vascular response frontal area of patients with orthostatic hypotension. J Nucl Med, 37:1-4.
- Lipsitz, LA (1989) Orthostatic hypotension in the elderly. N Eng J Med 1989, 321:952-957.
